Understanding the Big 4 Activated Carbon Specs: Iodine, Methylene Blue, Ash, and Hardness
Activated carbon buyers often compare products by specification numbers. Four of the most discussed indicators are iodine value, methylene blue value, ash, and hardness. These numbers are useful, but they must be interpreted with the application in mind. A single high number does not guarantee that a grade will perform well in every water, air, food, or gold recovery system.
This guide explains the big four specifications from a practical procurement perspective.

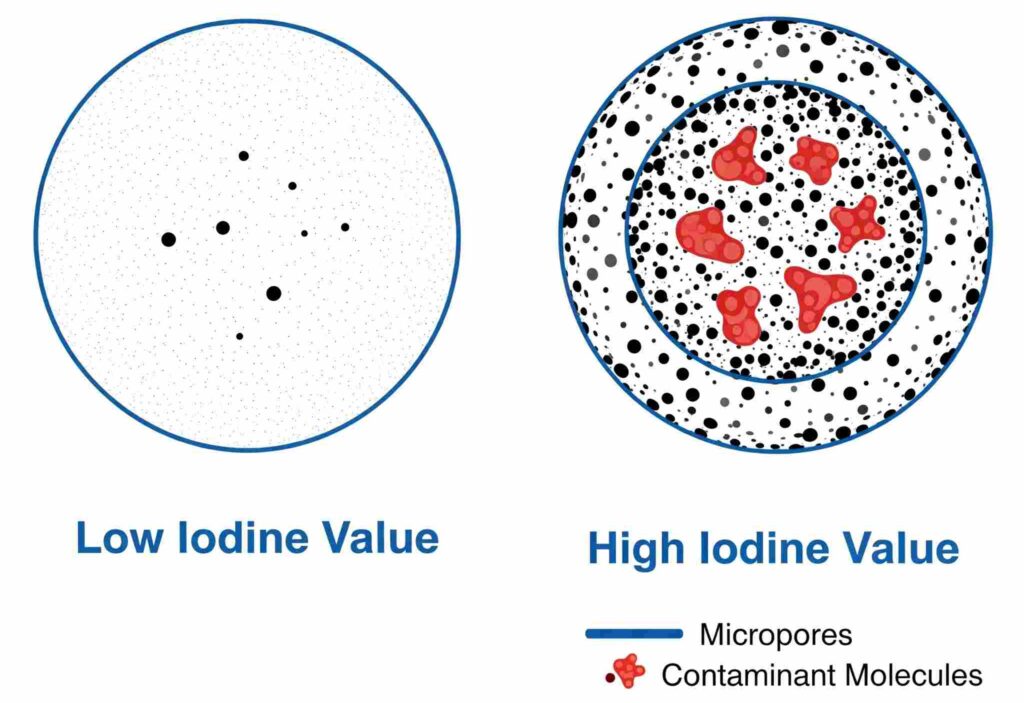

Iodine value: useful but not complete
Iodine value is commonly used as an indicator of micropore adsorption capacity. Buyers often use it to compare activated carbon grades because it is familiar and easy to request. Coconut shell and high-grade granular carbons are often compared by iodine value. However, iodine value does not describe particle size, hardness, ash, dust, bulk density, or the actual adsorption behavior for every contaminant.
For drinking water and fine organic removal, iodine value can support pre-selection. For wastewater color, large organic molecules, or specific industrial contaminants, other tests may be needed. Always connect iodine value to the real treatment target. Review drinking water treatment and industrial water treatment for application context.
Methylene blue: helpful for larger molecule adsorption
Methylene blue value is often used to understand adsorption capacity for larger molecules compared with iodine. It may be relevant in color removal, liquid purification, and some industrial applications. A high iodine value and a high methylene blue value do not always move together because they reflect different pore characteristics.
When wastewater or food-related decolorization is the goal, methylene blue can be a useful reference. It should still be combined with sample testing because real process streams contain mixed contaminants, competing substances, and variable pH. Relevant product options may include powdered activated carbon and granular activated carbon.
Ash: important for cleanliness and application fit
Ash is the inorganic residue in activated carbon. Lower ash may be important for certain water, food, and high-control applications. However, the acceptable ash level depends on the product type and use case. Some coal-based carbons may have higher ash but still perform well in industrial applications. Coconut shell carbon is often reviewed when buyers want lower ash and clean handling.
Buyers should ask how ash is measured and whether any leachable impurities are important for the application. For sensitive applications, sample testing and compliance review may be required. Compare coconut shell activated carbon with coal-based activated carbon based on actual project requirements.
Hardness: critical for movement, backwash, and service life
Hardness or abrasion resistance indicates how well activated carbon resists breakage and fines generation. It is important for backwashed filters, moving carbon systems, gold recovery circuits, and long-distance handling. Low hardness can create dust, pressure drop, carbon loss, or shorter service intervals.
Hardness should be reviewed together with particle size distribution. A hard carbon with poor screening may still cause operational issues. For gold recovery, hardness is often one of the most important checks because carbon movement can damage weak particles. See gold recovery activated carbon for application context.
Why particle size should be added to the big four
Although this article focuses on four common specifications, particle size is often just as important. The same carbon chemistry can behave differently in 4×8, 8×30, 12×40, pellet, or powdered form. Larger particles may reduce pressure drop but slow adsorption rate. Smaller particles may increase contact efficiency but create higher pressure drop or handling dust.
When requesting a quote, always include particle size. Review granular activated carbon, columnar activated carbon, and powdered activated carbon to compare form and size options.
How to use specifications in procurement
Specifications should help buyers control quality, not replace technical selection. A good RFQ states the application, target contaminants, particle size, key indicators, packaging, and testing needs. The supplier should recommend a grade and explain which indicators matter most. If the process is critical, samples should be tested under realistic conditions before bulk purchase.
Ask for a batch COA before shipment and compare it with the agreed range. If values are outside the agreed range, resolve the issue before loading. YRD’s quality control page explains how batch review supports this process.
Request specification support
If you are not sure which values to specify, send your application data to YRD. Include contaminant, flow rate, current media, target result, particle size preference, and packaging. The factory team can recommend a practical specification range and product option through the contact page.
